Screen layout becomes mad and xrandr does not obey my orders

When I try to set up my monitors using arandr to look for instance like this:

(in the picture there is arandr menu with two monitors, one beside another. They do not intersect, but stick to each other).

However, after I press enter the screens start to overlap both in arandr and in reality:

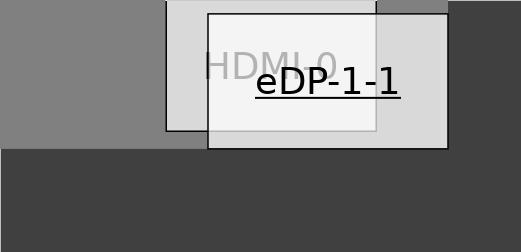

(in the picture there is arandr menu with two monitors that highly intersect, one covers about 70% of another).

causing following display to occur:

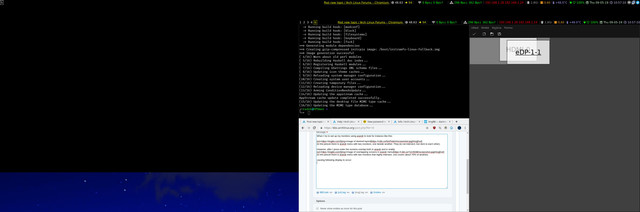

(in the picture there is screenshot of resulting layout. By the i3bars the viewer may see that one screen is over another. The screens are scattered across both monitors)

It doesn't matter if I call xrandr directly or use arandr. The script does not print any errors, however it returns 1 exit code.

This issue mostly appear after I suspend my laptop with monitors plugged and wake without them. It appears almost always when I try to play with --scale option. Once it becomes broken I cannot find a way to truly reset it beside full computer restart.

Plain xrandr output:

Screen 0: minimum 8 x 8, current 5280 x 1152, maximum 32767 x 32767
HDMI-0 connected 1680x1050+1817+0 (normal left inverted right x axis y axis) 434mm x 270mm panning 5280x1050+0+0 tracking 5280x1122+0+0 border 0/0/0/0
   1680x1050     59.88*+  59.95
   1440x900      59.89
   1280x1024     75.02    60.02
   1280x960      60.00
   1152x864      75.00
   1024x768      75.03    60.00
   800x600       75.00    60.32    56.25
   640x480       75.00    59.94
DP-0 connected (normal left inverted right x axis y axis)
   3840x2160     60.00 +  29.98    29.97    25.00    23.98
   1920x2160     59.99
   1920x1080     60.00    59.94    50.00
   1680x1050     59.95
   1440x900      74.98    59.89
   1280x1024     75.02    60.02
   1280x960      60.00
   1280x720      60.00    59.94    50.00
   1024x768      75.03    60.00
   800x600       75.00    60.32
   720x576       50.00
   720x480       59.94
   640x480       75.00    72.81    59.94    59.93
DP-1 disconnected (normal left inverted right x axis y axis)
eDP-1-1 connected primary 1920x1080+1680+72 (normal left inverted right x axis y axis) 344mm x 193mm
   1920x1080     60.06*+  60.01    59.97    59.96    59.93    40.04
   1680x1050     59.95    59.88
   1400x1050     59.98
   1600x900      59.99    59.94    59.95    59.82
   1280x1024     60.02
   1400x900      59.96    59.88
   1280x960      60.00
   1440x810      60.00    59.97
   1368x768      59.88    59.85
   1280x800      59.99    59.97    59.81    59.91
   1280x720      60.00    59.99    59.86    59.74
   1024x768      60.04    60.00
   960x720       60.00
   928x696       60.05
   896x672       60.01
   1024x576      59.95    59.96    59.90    59.82
   960x600       59.93    60.00
   960x540       59.96    59.99    59.63    59.82
   800x600       60.00    60.32    56.25
   840x525       60.01    59.88
   864x486       59.92    59.57
   700x525       59.98
   800x450       59.95    59.82
   640x512       60.02
   700x450       59.96    59.88
   640x480       60.00    59.94
   720x405       59.51    58.99
   684x384       59.88    59.85
   640x400       59.88    59.98
   640x360       59.86    59.83    59.84    59.32
   512x384       60.00
   512x288       60.00    59.92
   480x270       59.63    59.82
   400x300       60.32    56.34
   432x243       59.92    59.57
   320x240       60.05
   360x202       59.51    59.13
   320x180       59.84    59.32
DP-1-1 disconnected (normal left inverted right x axis y axis)
HDMI-1-1 disconnected (normal left inverted right x axis y axis)
  1680x1050 (0x4c) 146.250MHz -HSync +VSync
        h: width  1680 start 1784 end 1960 total 2240 skew    0 clock  65.29KHz
        v: height 1050 start 1053 end 1059 total 1089           clock  59.95Hz
  1680x1050 (0x4d) 119.000MHz +HSync -VSync
        h: width  1680 start 1728 end 1760 total 1840 skew    0 clock  64.67KHz
        v: height 1050 start 1053 end 1059 total 1080           clock  59.88Hz
  1280x1024 (0x53) 108.000MHz +HSync +VSync
        h: width  1280 start 1328 end 1440 total 1688 skew    0 clock  63.98KHz
        v: height 1024 start 1025 end 1028 total 1066           clock  60.02Hz
  1280x960 (0x56) 108.000MHz +HSync +VSync
        h: width  1280 start 1376 end 1488 total 1800 skew    0 clock  60.00KHz
        v: height  960 start  961 end  964 total 1000           clock  60.00Hz
  1024x768 (0x64) 65.000MHz -HSync -VSync
        h: width  1024 start 1048 end 1184 total 1344 skew    0 clock  48.36KHz
        v: height  768 start  771 end  777 total  806           clock  60.00Hz
  800x600 (0x73) 40.000MHz +HSync +VSync
        h: width   800 start  840 end  968 total 1056 skew    0 clock  37.88KHz
        v: height  600 start  601 end  605 total  628           clock  60.32Hz
  800x600 (0x74) 36.000MHz +HSync +VSync
        h: width   800 start  824 end  896 total 1024 skew    0 clock  35.16KHz
        v: height  600 start  601 end  603 total  625           clock  56.25Hz
  640x480 (0x80) 25.175MHz -HSync -VSync
        h: width   640 start  656 end  752 total  800 skew    0 clock  31.47KHz
        v: height  480 start  490 end  492 total  525           clock  59.94Hz
