Stuck at 'loading initial ramdisk' on latest kernel

Sandrino · 2023-09-16 15:46:05

Hi, latest kernel that boots on my laptop is 6.4.12.
The newer ones (6.4.13 and 6.5.3) block the boot at loading initial ramdisk.
I tried the lts an it boots fine.
Arch is installed since two years on a btrfs filesystem and the vga is an integrated Intel hd 530.
I did some researces finding nothing useful, any help is appreciated.

loqs · 2023-09-16 16:01:54

Sandrino wrote:

The newer ones (6.4.13 and 6.5.3) block the boot at loading initial ramdisk.

Have you confirmed the boot is really stuck rather than just the display by examining the journal? Arch never released a 6.4.13 package where did that come from?

Sandrino · 2023-09-16 18:03:04

My wrong, you are right, it was 6.5.2 not 6.4.13.
Journal -b doesn't show any error

loqs · 2023-09-16 18:21:34

What if you Disable modesetting? If that fails try blacklisting i915. If that fails try adding the following Kernel parameters and see if any more output is produced:

ignore_loglevel earlycon=efifb earlyprintk=vga,keep

Sandrino · 2023-09-16 19:16:57

Tried adding to 6.5.3 these kernel parameters with no luck:

 nomodeset i915.modeset=0

 module_blacklist=i915

Adding

 ignore_loglevel earlycon=efifb earlyprintk=vga,keep

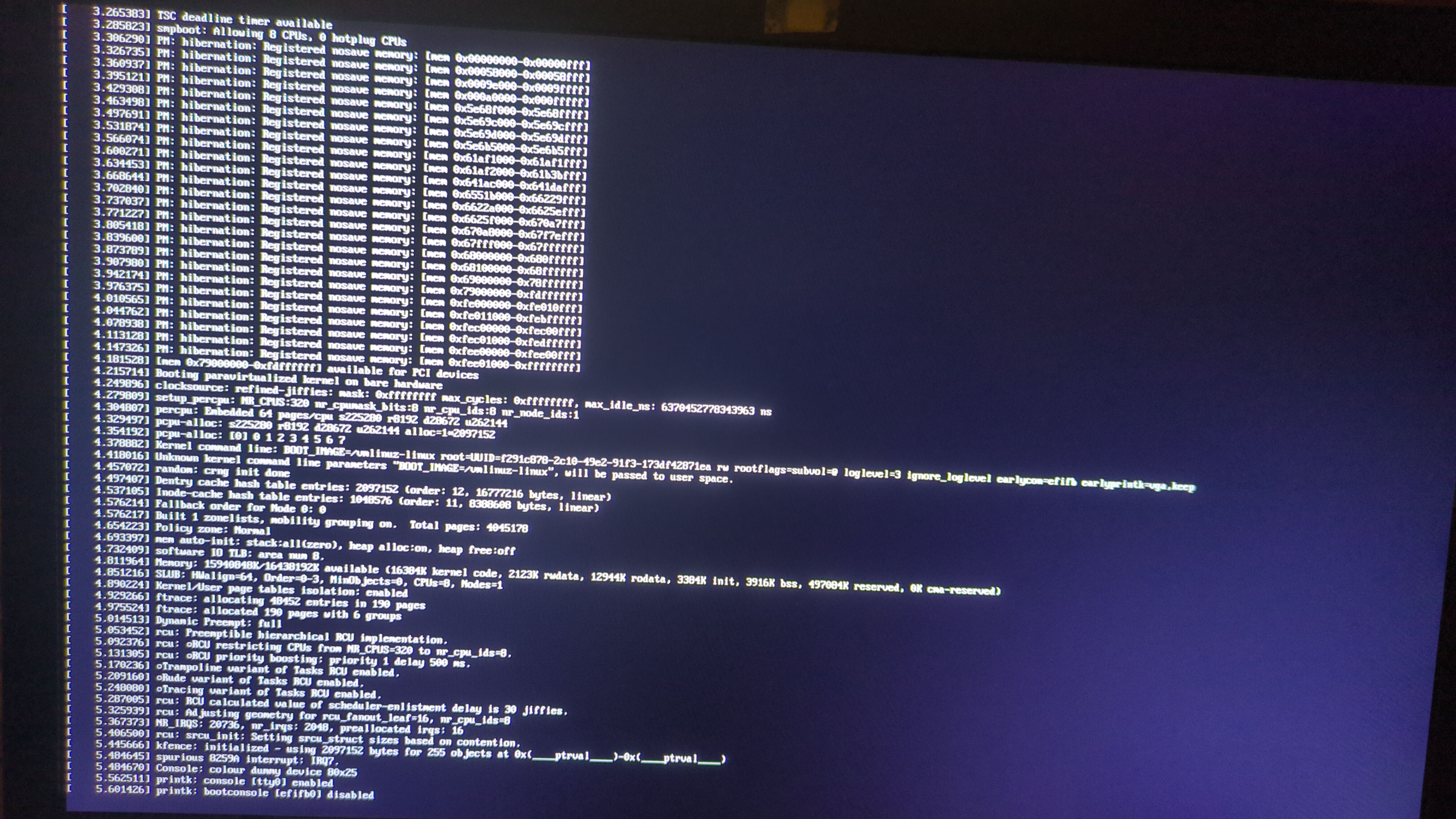

produces more output but it's incomprehensible to me. There's only a suspicious line that says:
unknown kernel command line parameter "BOOT_IMAGE=/vmlinuz-linux", will be passed to user space

Last edited by Sandrino (2023-09-16 19:36:38)

loqs · 2023-09-16 19:28:25

Please post a link to an image of the incomprehensible output.

Sandrino · 2023-09-16 19:46:56

https://postimg.cc/23sydRyG

Last edited by Sandrino (2023-09-16 19:55:16)

Sandrino · 2023-09-16 19:50:23

Ops, the image quality on phone is good but the uploaded one in terrible
edit: changed image host

Last edited by Sandrino (2023-09-16 19:55:53)

seth · 2023-09-16 20:05:41

https://i.ibb.co/8DZWWp5/IMG-20230916-210020-004.jpg and https://i.postimg.cc/4ZvQp32x/IMG-20230 … 20-004.jpg look equal to me.

Probably post your complete system journal for a 6.4.12 boot:

sudo journalctl -b | curl -F 'file=@-' 0x0.st

Sandrino · 2023-09-16 20:27:03

http://0x0.st/HObJ.txt

seth · 2023-09-16 20:33:23

set 16 22:23:18 drinopc kernel: DMI: ASUSTeK COMPUTER INC. N752VX/N752VX, BIOS N752VX.303 04/17/2019
set 16 22:23:18 drinopc kernel: DMAR: [Firmware Bug]: No firmware reserved region can cover this RMRR [0x0000000068800000-0x0000000078ffffff], contact BIOS vendor for fixes
set 16 22:23:18 drinopc kernel: DMAR: [Firmware Bug]: Your BIOS is broken; bad RMRR [0x0000000068800000-0x0000000078ffffff]
                                BIOS vendor: American Megatrends Inc.; Ver: N752VX.303; Product Version: 1.0

Is there a BIOS/UEFI update available?

set 16 22:23:18 drinopc kernel: nouveau 0000:01:00.0: [drm] Cannot find any crtc or sizes

"module_blacklist=nouveau"
Alternatively your GPU is still supported by the nvidia driver.

Probably also add "initcall_blacklist=simpledrm_platform_driver_init" to the https://wiki.archlinux.org/title/Kernel_parameters to get rid of the simpledrm device.

Sandrino · 2023-09-16 20:46:24

There isn't any bios update.
There is an Nvidia 950m but isn't installed, the Intel igpu is running
Going to try the suggested kernel parameter

Sandrino · 2023-09-16 21:01:25

Adding

 initcall_blacklist=simpledrm_platform_driver_init

to 6.5.3 doesn't solve the issue, stuck at loading initial ramdisk

seth · 2023-09-16 21:02:56

Did you also blacklist nouveau?
The GPU is very much "installed" and addressed by the kernel and nouvau in particular has a track record of stalling the PCI bus…

Sandrino · 2023-09-16 21:10:26

Adding

 module_blacklist=nouveau

doesn't solve

Sandrino · 2023-09-16 21:13:01

seth wrote:

Did you also blacklist nouveau?
The GPU is very much "installed" and addressed by the kernel and nouvau in particular has a track record of stalling the PCI bus…

I didn't installed any Nvidia driver

seth · 2023-09-16 21:15:26

nouveau is the kernel in-tree driver for nvidia GPUs.

Try "acpi=off"

Sandrino · 2023-09-16 21:23:45

seth wrote:

nouveau is the kernel in-tree driver for nvidia GPUs.
Try "acpi=off"

Something is changed, system boots but it's impossible to login, no input typing the password

loqs · 2023-09-16 21:32:52

What about pci=noacpi

Sandrino · 2023-09-16 21:39:57

loqs wrote:

What about pci=noacpi

Doesn't boot

edit: installing Nvidia driver can solve this issue?

Last edited by Sandrino (2023-09-16 21:43:04)

seth · 2023-09-17 05:47:31

Probably not.
Does "noapic" [sic!] work?

Sandrino · 2023-09-17 06:26:06

seth wrote:

Probably not.
Does "noapic" [sic!] work?

Unfortunately no.

seth · 2023-09-17 13:55:32

Something is changed, system boots but it's impossible to login, no input typing the password

What exactly is the environment at this point? A rescue shell? Normal console login? Some graphical DM (GDM etc)?

Do you get away w/ "acpi=noirq"?

Sandrino · 2023-09-17 15:34:24

seth wrote:

Something is changed, system boots but it's impossible to login, no input typing the password
What exactly is the environment at this point? A rescue shell? Normal console login? Some graphical DM (GDM etc)?
Do you get away w/ "acpi=noirq"?

"acpi=noirq" doesn't fix
SDDM login

edit: just to inform, sometimes it gets stuck at loading initial ramdisk even running a working kernel and I have to reboot to start the system. It has always done so. Maybe a crappy PC

Last edited by Sandrino (2023-09-17 15:41:00)

seth · 2023-09-17 15:55:48

"rootdelay=5" (waits 5 seconds before trying to mount the root FS
or
"boot_delay=1000", if it boots, that'll be slooooowly

"i8042.dumbkbd" along acpi=off might get you a keyboard and us a journal from an acpi-less boot of the "bad" kernel.
